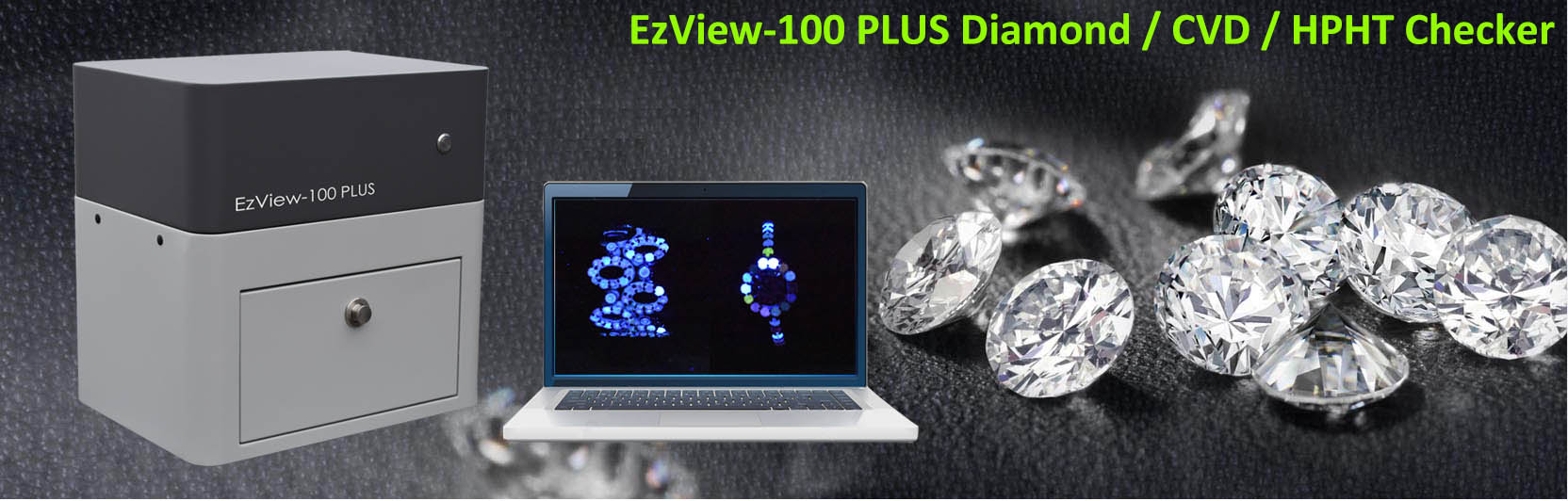

EzView-100 PLUS Diamond Checker
  • Product Category: PRODUCTS EzView series


  • EzView-100 PLUS Diamond Checker Spectifications:


      Model

      EzView-100 plus

      Effective testing area

      180X130 mm

      Sample chamber size

      330X240mm

      Sample type

      Bare diamond, rough diamond, finishing jewelry (ring,bangles,necklace)

      Smallest sample size

      0.001 Carat

      Effective Pixels

      24.16 million pixels

      Image resolution

      6000X4000

      Software

      Based on Windows 10 system, easy to operate

      Power supply

      220V 50Hz/ 110V 60Hz

      Dimension

      400X300X400 mm

      Weight

      19Kg

      Warranty

      1 year



        The difference between EzView-100 and EzView-100 PLUS is the size of the spectral illumination area. The effective testing area of EzView-100 is about 110x80 mm, and effective testing area of EzView-100 PLUS is about 180x130 mm. According to the different needs of customers, they will choose different sizes of diamond checker. At the exhibition, we also saw that the volume of many jewellery is very large, so the diamond checker in the traditional sense cannot be completely irradiated, so in response to customer demand, we have produced a larger volume, and the effective irradiation area is larger. EzView-100 PLUS, which has the same function as the EzView-100, but can detect larger jewels. This is by far the largest diamond checker in the world, and the unique design of EzView-100 PLUS.
